Transpak

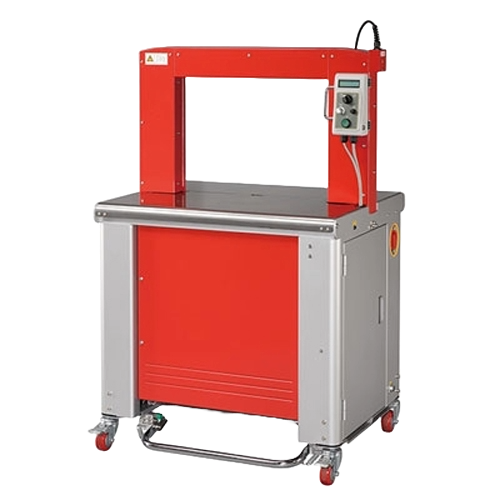

TRANSPAK TP-702 (NARROW SEAL)

TRANSPAK TP-702 (NARROW SEAL)

SKU: TP702-1

Transpak TP-702 Narrow seal is made to strap small packages. TP-702 is an innovative world-class high speed automatic strapping machine. It is suitable for 5 mm, 6 mm, 9 mm, or 12 mm PP strapping. Equipping with all industry’s standard features and creative user friendly designs, TP-702 offers the most optimal performance, highest speed, easiest maintenance, and the most cost effective solution in its class. Contact Us View full details

Additional Information

Description

Transpak TP-702 Narrow seal is made to strap small packages.

TP-702 is an innovative world-class high speed automatic strapping machine. It is suitable for 5 mm, 6 mm, 9 mm, or 12 mm PP strapping. Equipping with all industry’s standard features and creative user friendly designs, TP-702 offers the most optimal performance, highest speed, easiest maintenance, and the most cost effective solution in its class.



Features

  • Robust & compact mechanical strapping head
  • High speed up to 65 straps per minute
  • Free access to strap guides (patents registered)
  • Waist-high auto strap feeding

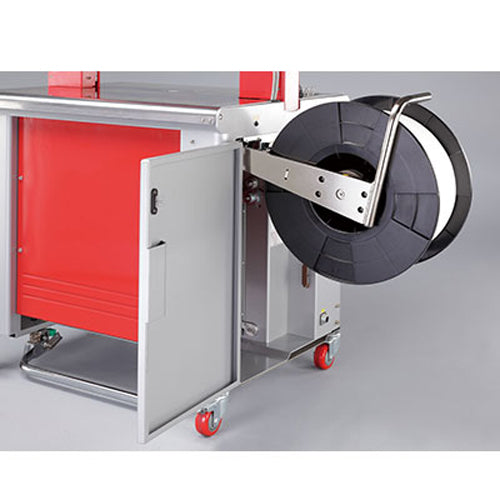

  • Waist-high quick coil change (patents registered)
  • Turnable operating control panel
  • Auto strap ejector
  • Dispenser release switch
  • Sensor controlled heater
  • Low voltage
  • Strap end ejector

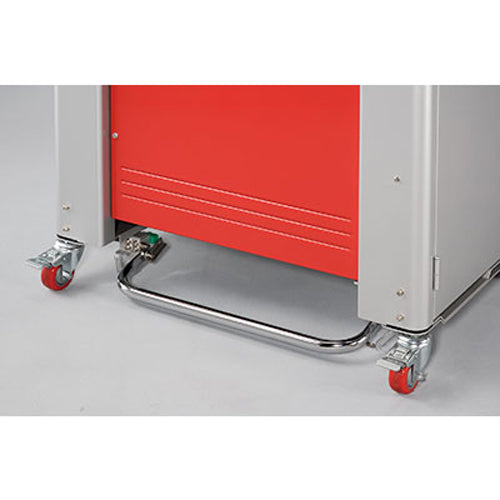

  • Front foot bar switch
  • Adjustable table height between 820 mm and 920 mm



Options

  • Photo-eye switch
  • Rear foot bar switch
  • Foot pedal switch
  • Lower adjustable table height (770 mm – 820 mm)

Technical Data

Capacity Up to 65 cycles/minute (TP-702-59)
Up to 60 cycles/minute (TP-702-12)
Strap Width 5 mm, 6 mm, or 9 mm (TP-702-59)
12 mm (TP-702-12)
Tension Range 1 to 32 kg (TP-702-59)
1 to 45 kg (TP-702-12)
(Higher tension is on request)
Weight 158 kg (TP-702-59)
167 kg (TP-702-12)
Electrical Requirements 110V, 220V, 230V, 240V 50/60Hz 1PH
